The B23 set includes:

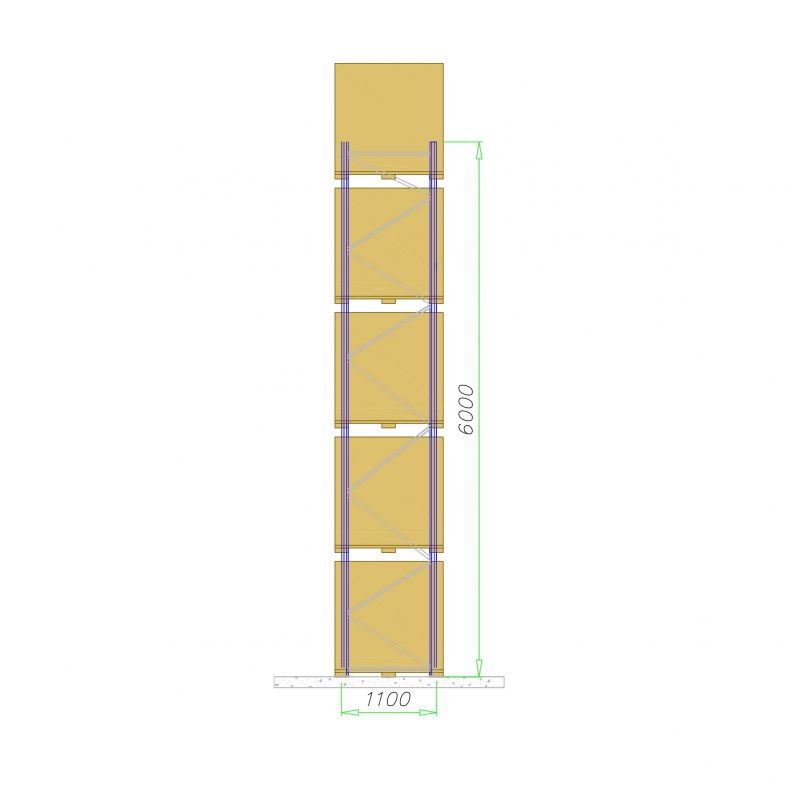

4 complete frames, height 6000 mm x depth. 1100mm
24 beams 3600 mm load capacity 2000 kg
16 anchors 120 mm galvanized
4 leveling pads 1 mm, galvanized
2 leveling pads 3 mm galvanized

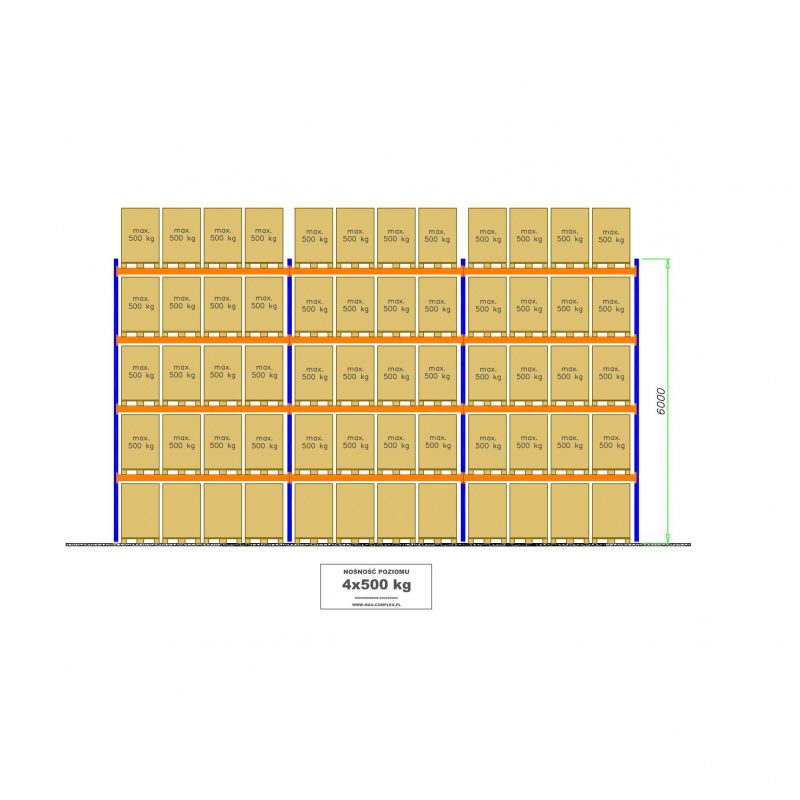

stickers with a load capacity of 4x500kg
beam protection
CE declaration of conformity
Pallet rack assembly instructions
Painting: high-quality epoxy coating
Level adjustment with 50 mm increment
Warranty 5 years

We issue a Declaration of Conformity necessary for storing goods.

A system for storing light and heavy pallets. Its characteristic features are: reliable and stable construction (safety factor 1.4), high quality and a large variety of accessories. This allows for optimal warehouse planning in accordance with the individual needs of the user.

Supporting frame – composed of two columns, bracings (diagonals) and feet, ensuring excellent buckling and flexural-torsion stiffness. The frames are assembled with screws, which ensures low repair costs in the event of damage by forklifts. Each connection is secured with a self-locking nut. The variety of frames allows you to optimize the structure and achieve a height of up to 30 m and a load capacity of spans up to 45 tons. Pole – cold bent, strain-strengthened, 12 folds giving exceptional stiffness, width 85 mm, sheet thickness from 1.75 mm to 2 mm. Braces (diagonal) - connected using screws with a semi-closed profile, made of galvanized sheet metal. Feet - galvanized, hot-dip galvanized, each time converted into loads transferred from the column to the floor for even distribution of loads. Each foot is attached to the floor with a very durable M12x100 anchor. Beam – composed of closed profiles and connectors with special hooks. Perforation - a special perforation that can only be made on CNC machines with a very small manufacturing tolerance, giving the structure extraordinary rigidity.

Quality indicators for shelves: ISO 14001, ISO 9001, ISO 9002 certificate.

Strength calculations for shelves:

: all static calculations of the structure as well as the arrangement and dimensions of the shelves were made in accordance with the FEM 10.3.01 and FEM 10.2.03 standards

*The operating and assembly manual is available for download in the "my account" tab after purchasing the product
