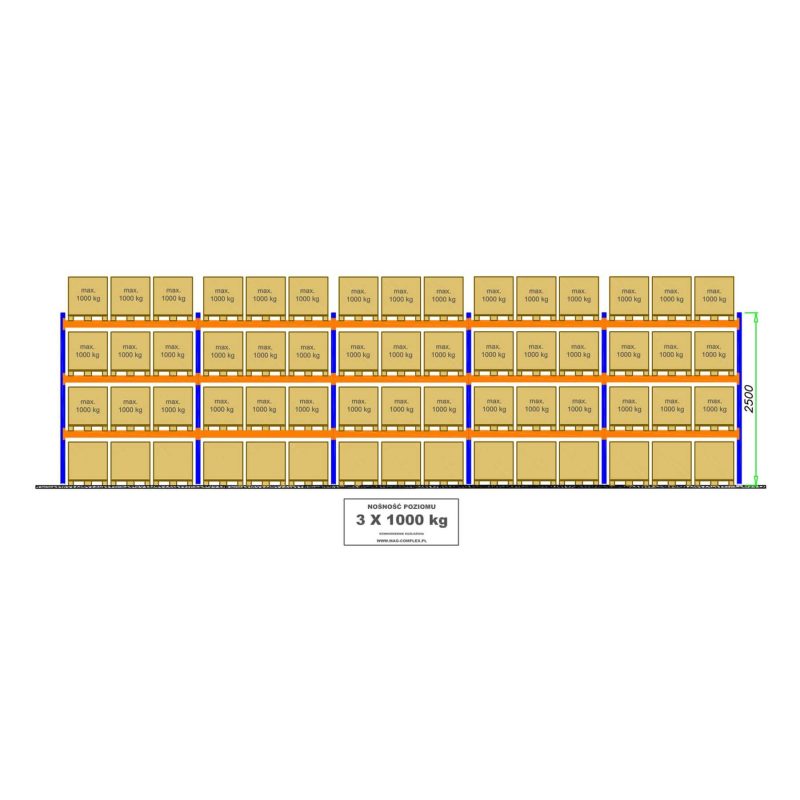

B150 pallet rack L=14010mm 60 pallets – 1000kg 0+3

W skład zestawu B150 wchodzi:

• 6 complete frames, height 2500 mm x depth. 1100mm
• 30 beams (traverses) 2700 mm, load capacity 3x1000kg
• 24 120 mm galvanized anchors
• 6 1 mm galvanized leveling washers
• 3 3 mm galvanized leveling washers
• Stickers with a load capacity of 3x1000kg
• Beam protection
• CE Declaration of Conformity
• Pallet rack assembly instructions
• Painting: high-quality epoxy coating
• Level adjustment with 50 mm increment
• Warranty 5 years

The pallet rack (set B65) has a Declaration of Conformity necessary for storing goods.

A system for storing light and heavy pallets. Its characteristic features are: reliable and stable construction (safety factor 1.4), high quality and a large variety of accessories. This allows for optimal warehouse planning in accordance with the individual needs of the user.

Supporting frame – composed of two columns, bracings (diagonals) and footings, ensuring excellent buckling and flexural-torsion stiffness. The frames are assembled with screws, which ensures low repair costs in the event of damage by forklifts. Each connection is secured with a self-locking nut. The variety of frames allows you to optimize the structure and achieve a height of up to 30 m and a load capacity of spans up to 45 tons.

Pole – cold bent, strengthened by crushing, 12 folds giving exceptional stiffness, width 85 mm, sheet thickness from 1.75 mm to 2 mm.

Bracing (diagonal) – connected using screws with a semi-closed profile, made of galvanized sheet metal.

Feet – galvanized, hot-dip galvanized, each time converted into loads transferred from the column to the floor for even distribution of loads. Each foot is attached to the floor with a very durable M12x100 anchor.

Bar – composed of closed profiles and connectors with special hooks.

Perforation – special perforation that can only be made on CNC machines with very small manufacturing tolerances, giving the structure extraordinary rigidity.

Quality indicators for shelves: ISO 14001, ISO 9001, ISO 9002 certificate.

Strength calculations for shelves: all static calculations of the structure as well as the arrangement and dimensions of the shelves were made in accordance with the FEM 10.3.01 and FEM 10.2.03 standards

*The operating and assembly manual is available for download in the "my account" tab after purchasing the product
